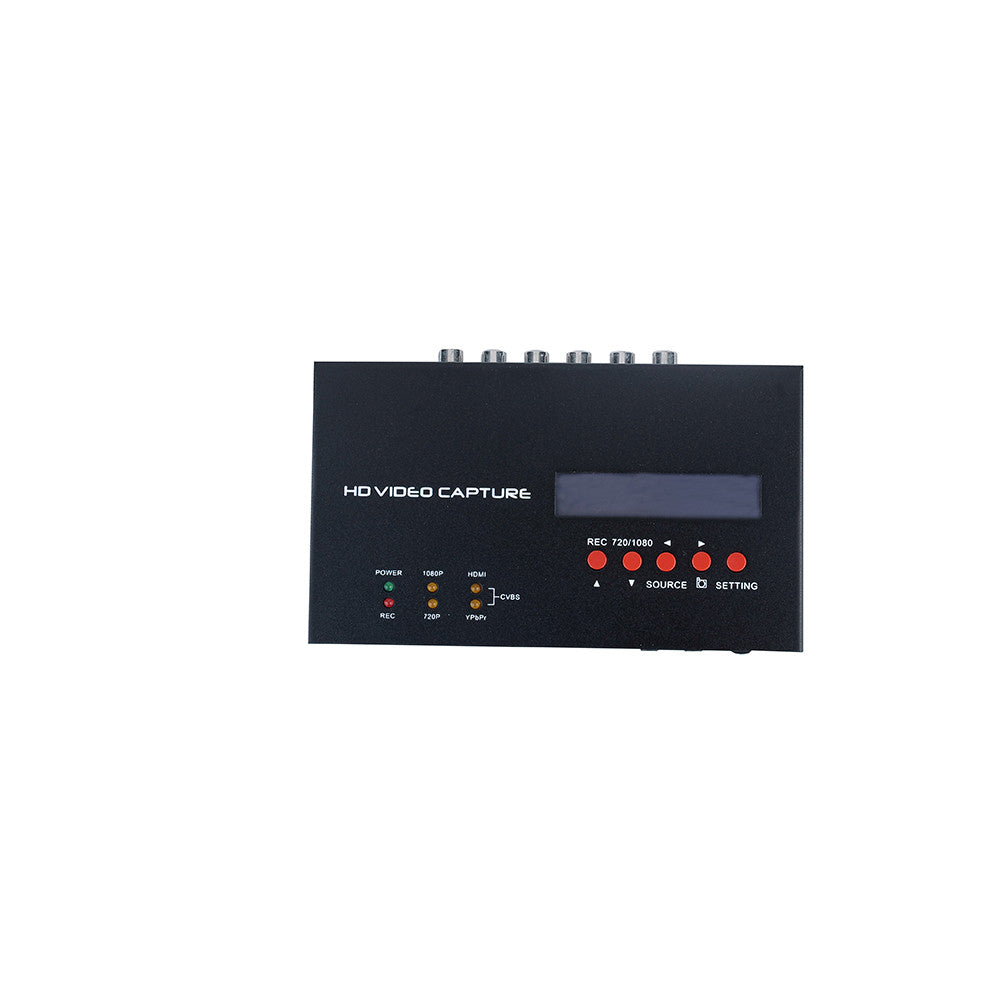

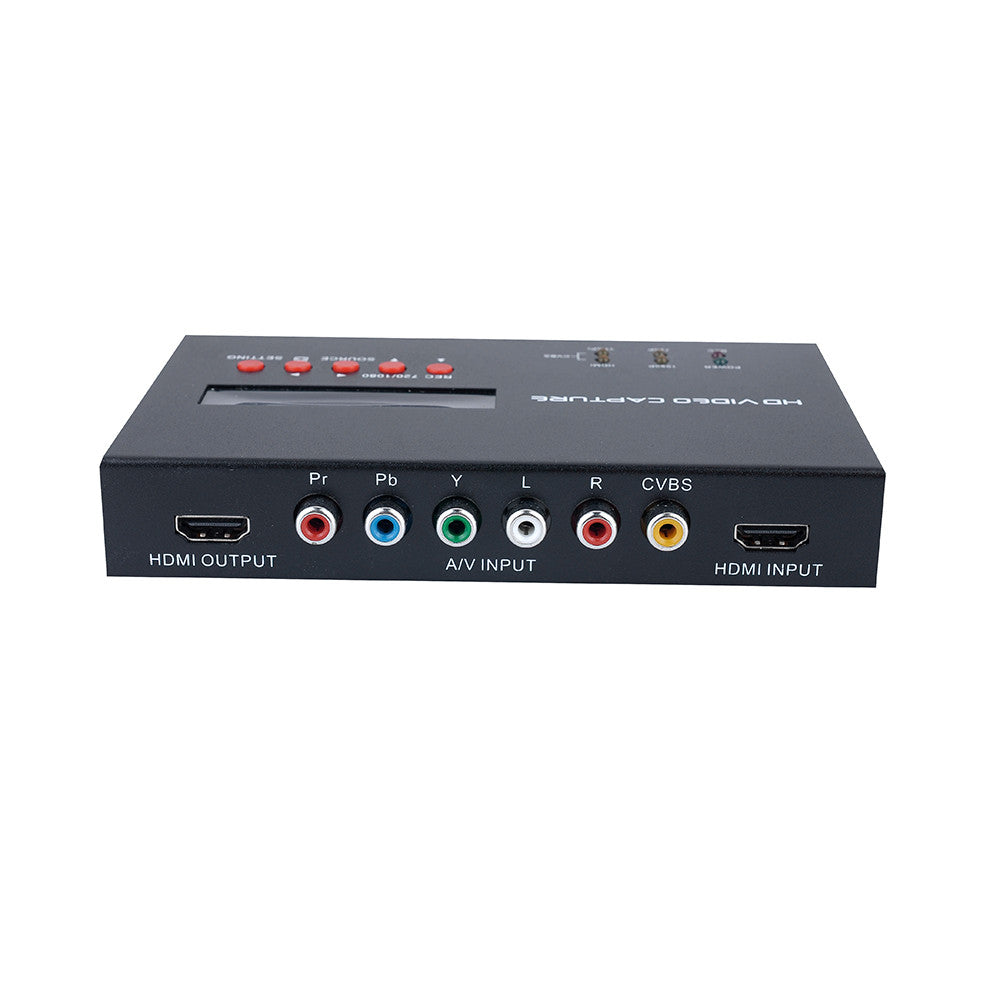

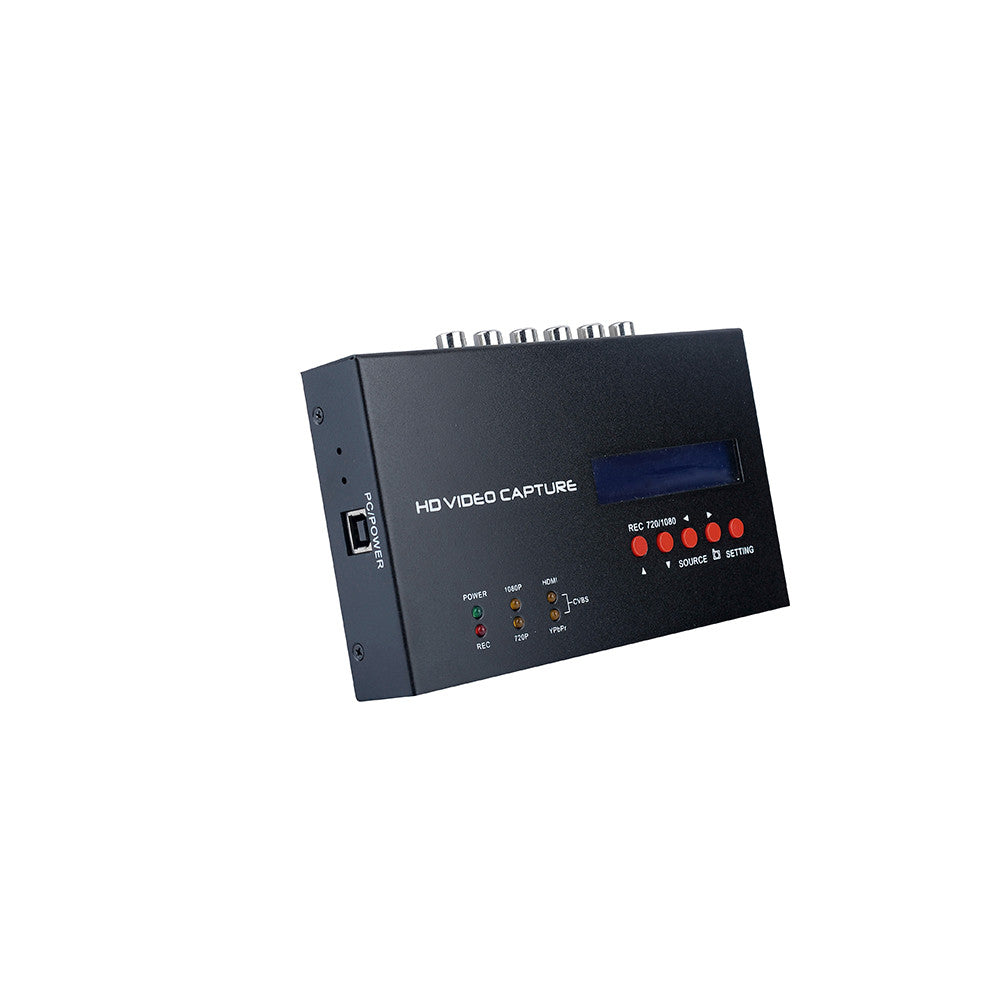

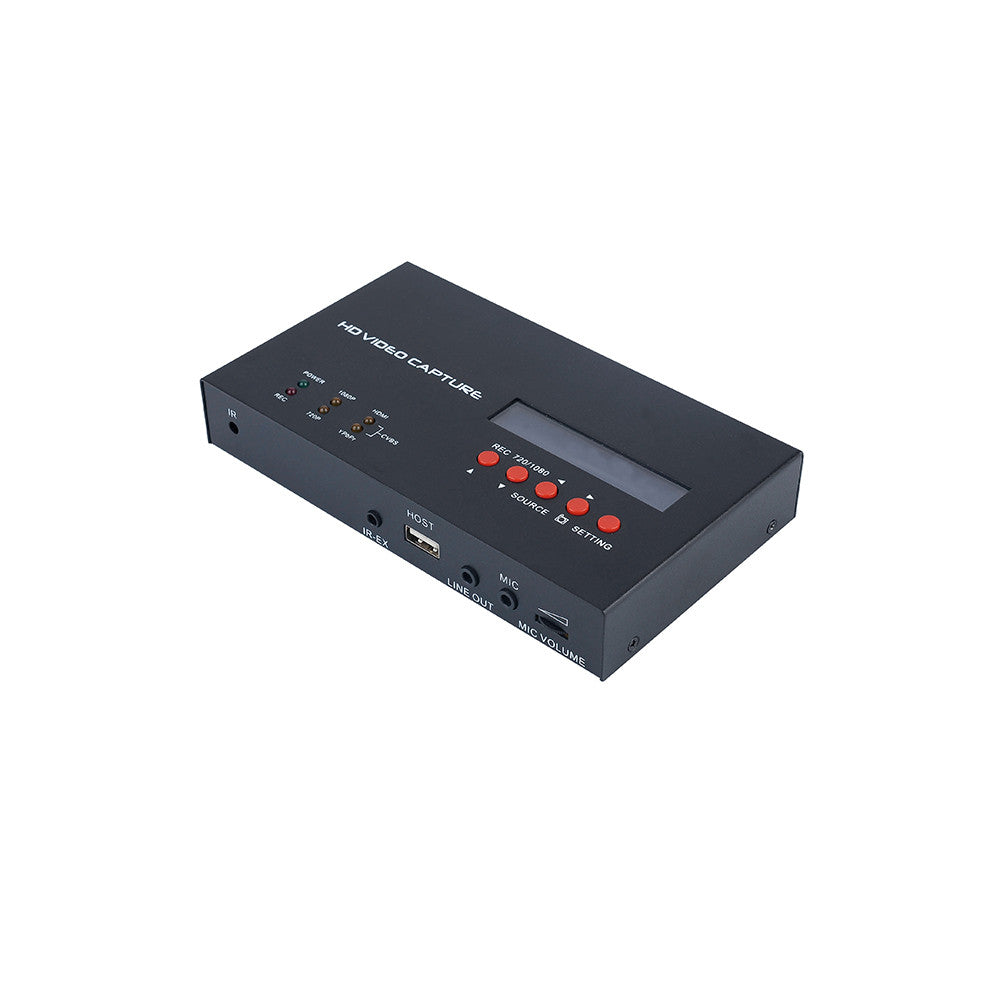

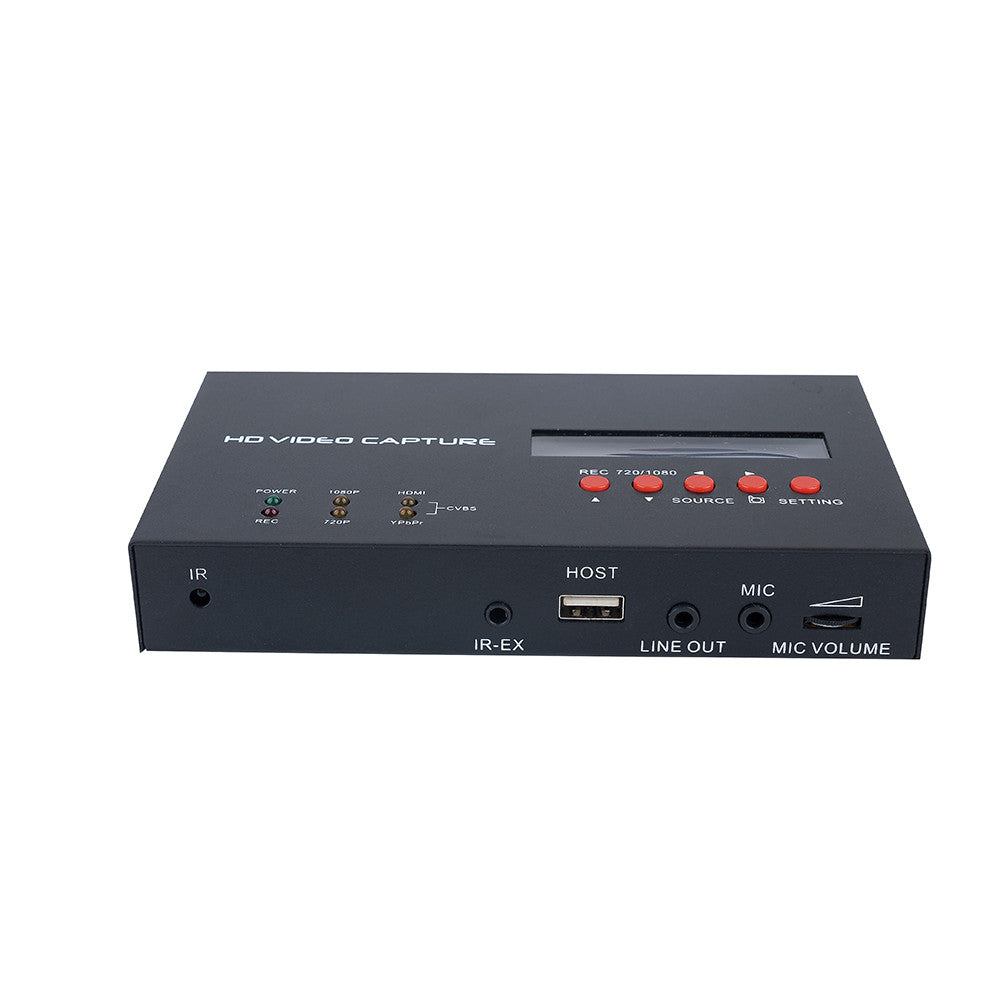

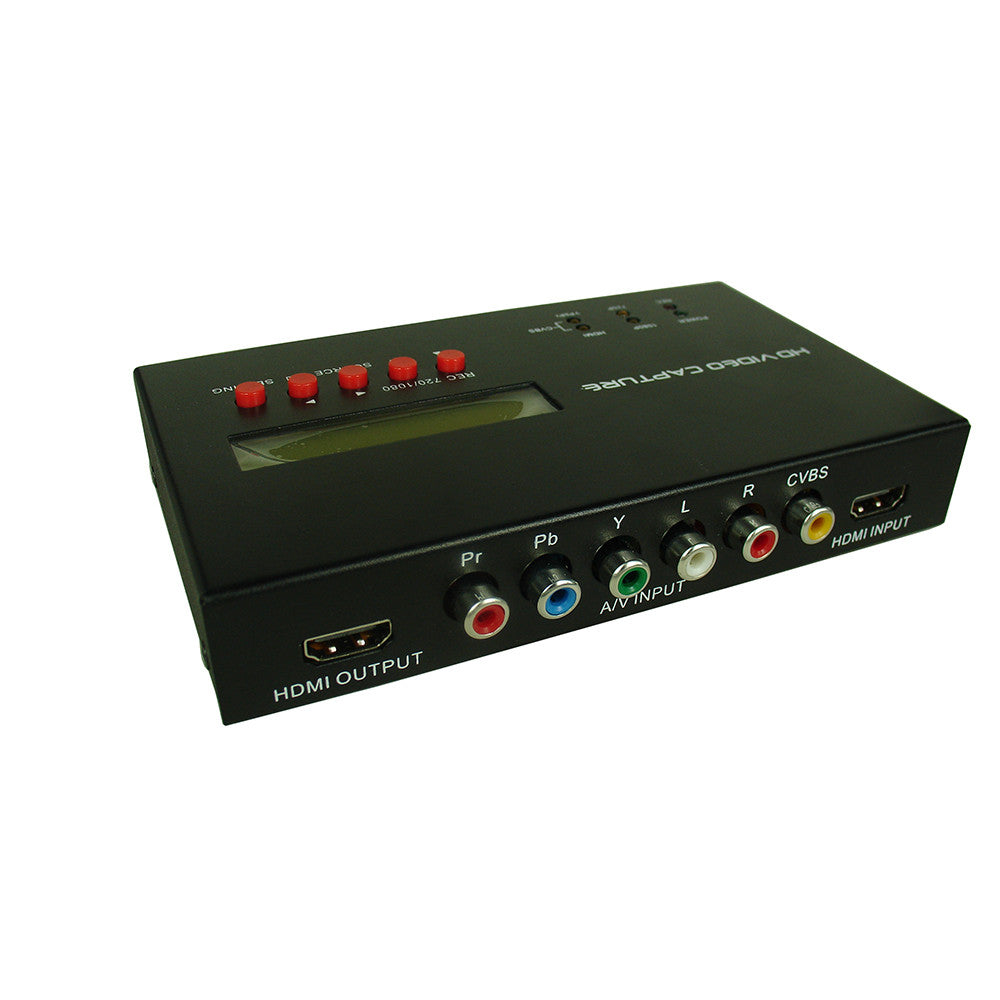

1080P HD Video Capture HDMI Game Capture Recorder 1080P recording with one click no PC required 220V

- MEGASAVE

  • $179.99

Description

Features:
1080P recording with one click, no PC required.
Easy to use, no any set-up. You just click RECORD button to record your gameplay.
More video input choice: HDMI, Component Video, Composite Video.
With 1080P HDMI Pass-through, you can playing HD gameplay when you're recording it.
With Micro Phone in, can record your voice with video together. Also with adjusting Mic volume.  With video source button and 720P/1080P recording quality selection button.
Get Record/Stop, Video source selection, 720P/1080P selection and Snap shot functions with Remote Control.
With recording schedule function, you can set recording time of the future.

Connections
Interface USB 2.0 Host
Video Input Digital: HDMI
Analog: Component Video, Composite Video
Audio Input Digital: HDMI
Analog: RCA L/R, 3.5mm MicroPhone In
Note: Microphone without pass through fo HDMI input
Video Output Digital: HDMI (Pass-through from HDMI or Component or Composite Input)
Audio Output Digital: HDMI (Pass-through from HDMI or RCA L/R Input)
Analog: 3.5mm Stereo (Pass-through from HDMI or RCA L/R Input)

Applicable Connections
HDMI Industry HD camera, HD Medical endoscope, TV, gameplay, etc
Component TV, gameplay, etc
Composite Industry camera, Medical endoscope, TV, gameplay, etc

Hardware Extra
Codec Hardware H.264 encoder
User Interface Record button, 720p/1080p switch button, source change button£¬two buttons for setting time and schedule
LED indicator for working status. With LCD screen for show time and schedule status
Dimensions 155(L) ¡Á 92(W) ¡Á 30(H) mm
Weight 365g

Package Contents
Device ezcap283 HD Video Capture
Others DC adaptor, USB cable, remote controller, remote expand cable, Software CD, Manual

Standards
Storage Media USB Flash Disk, Portable Hard Disk
Max Capacity: USB / 2T
Note: The exFAT format is not supported.
Resolution Input / Pass-through:                                                                                             720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Capture:                                                                                                               720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
Note: Upscaling is not supported.
Record Format Video: MP4, Audio: AAC Stereo
Record Quality Max: 18Mbps@1080P 30fps
Record File Max: 2GB / Per File, With RTC (Real Time Clock)
Record Place Max: 140MB / Minute, 8.4GB / Hour
Power Supply USB B, DC 5V / 2A

Applications
Software Arcsoft Showbiz
Video Editing Timeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes ¡­
Video Export Upload to YouTube
Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox
File: MPEG 1 / 2 / 4, WMV HD, Quicktime (MOV) ¡­
Operating System Windows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit)
CPU Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz
Memory 4 GB RAM
Graphics Card VGA card with support for DirectX
