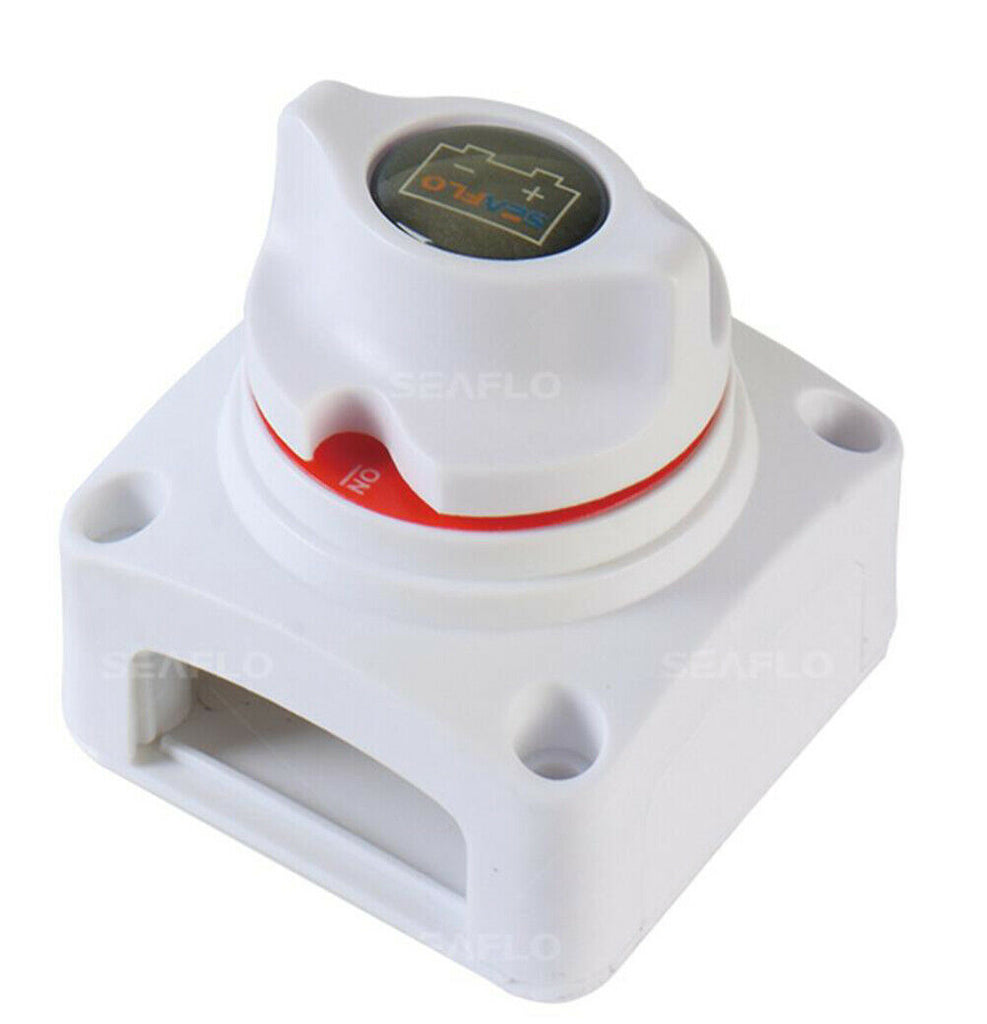

NEW 8-50V 1250A 2 POSITION BATTERY ISOLATOR KILL SWITCH Boat/Marine/Caravan/4x4

Product Description

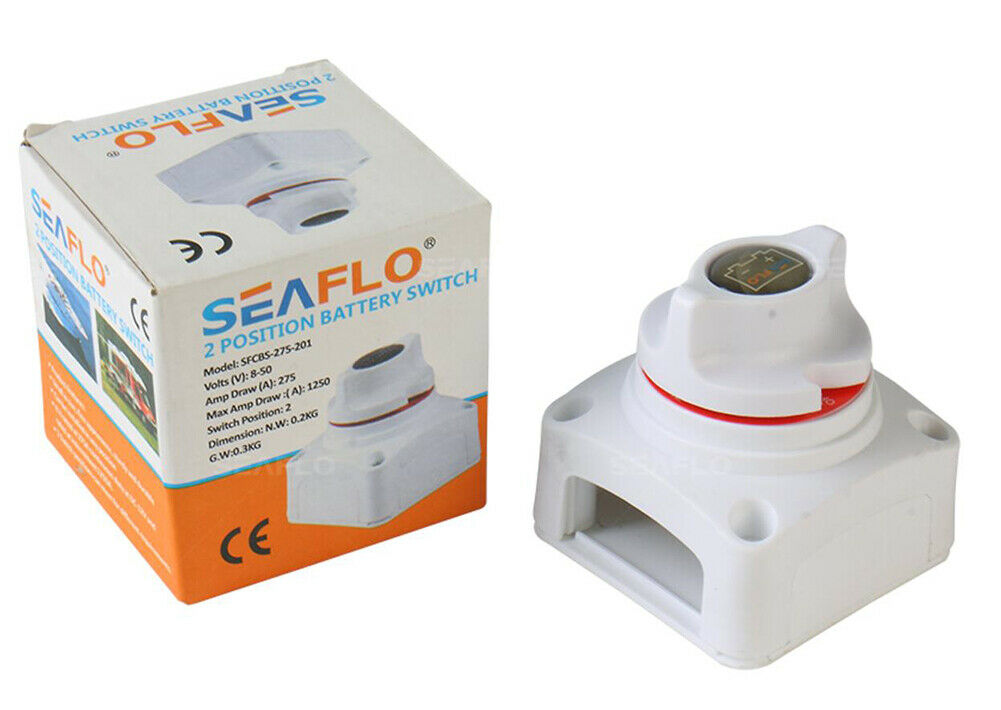

This product is 100% brand new and comes in original box

Great for your boat, caravan, RV, 4x4, show car, trailer, winch power cable, and more

Extra Heavy Duty - Rated at 1250 Amps momentary, 275 Amps continuous @ 12V DC

2-Position: ON and OFF positions

Can be used with 8V up to 50V DC systems to isolate and secure the electrical system

Disconnects the battery safely, to eliminate any power draw from the battery when vehicle or boat is not in use

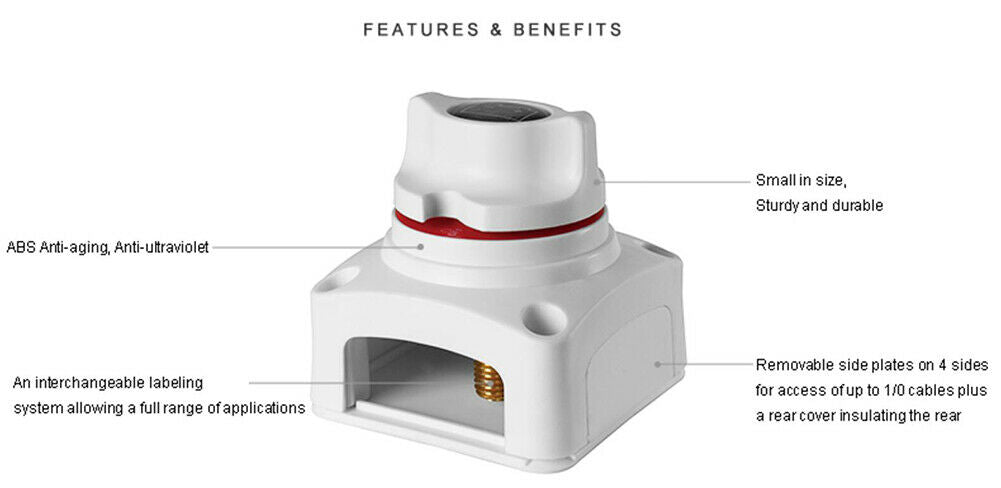

Compact size, sleek modern appearance, sturdy and durable

Patented contour link system, allowing it to be a standalone unit, or linked together with other similar switches

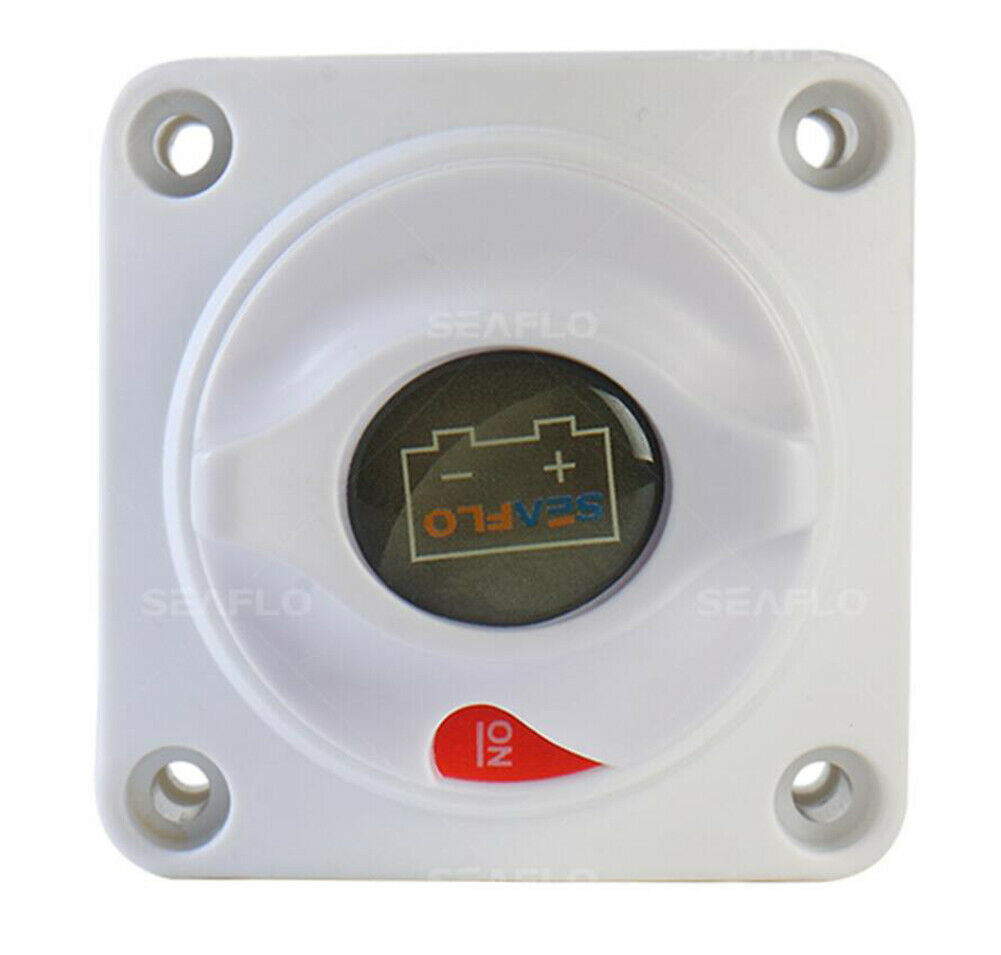

Rotary dial has a spring-loaded keeper to lock the selected position

UV stabilized construction - Built to last in marine conditions

Easy to install - Comprehensive wiring diagram and installation instructions included

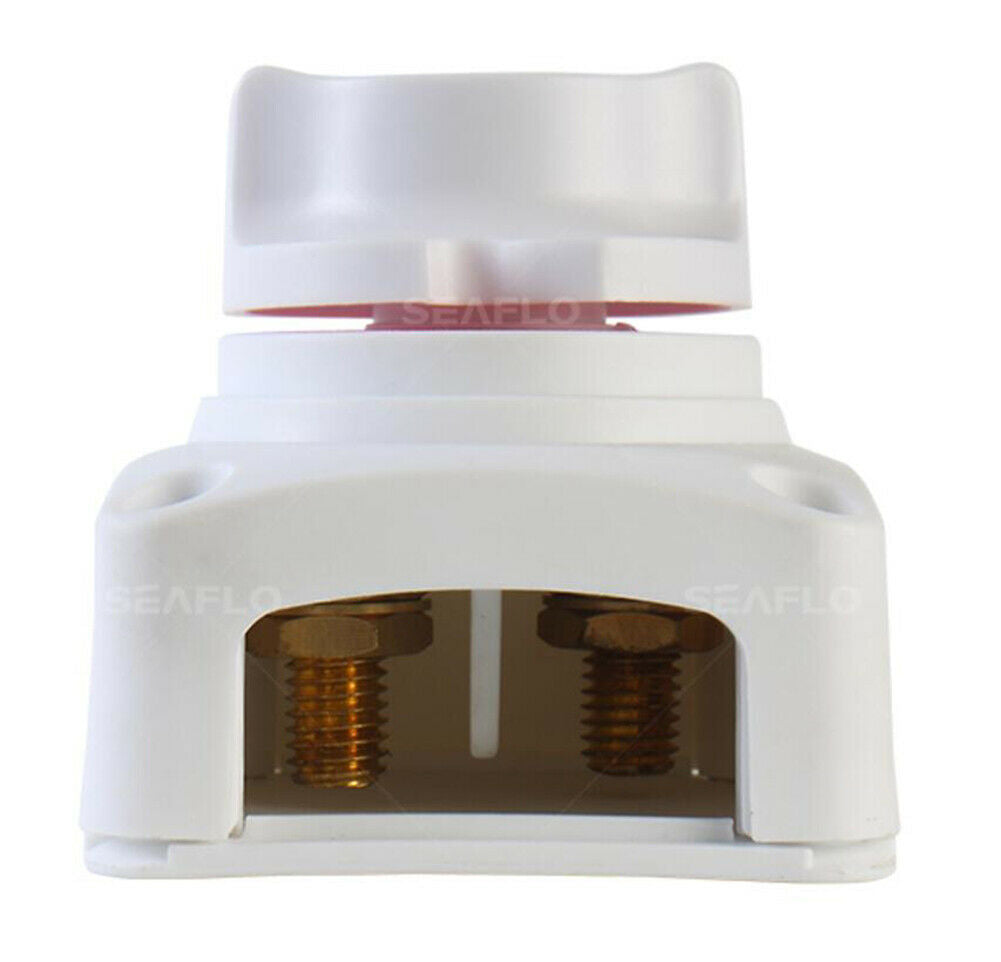

2 copper terminal studs with nuts and washers

4 mounting screw holes

Does not include mounting screws

Beware of inferior non-genuine products on the market that claim to be just as good

Specifications

Voltage: 8V to 50V DC

Rated at 1250 Amps momentary @ 12V DC, 275 Amps continuous @ 12V  DC

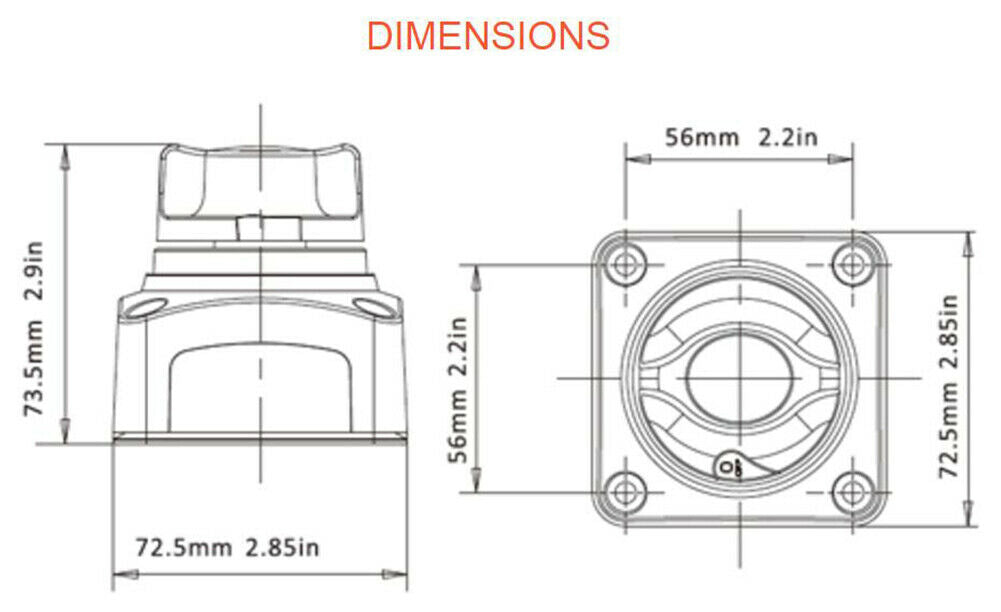

Base: 2.85" x 2.85" (72.5mm x 72.5mm)

Height: 2.90" (73.5mm)

Terminal studs: 10mm diameter
