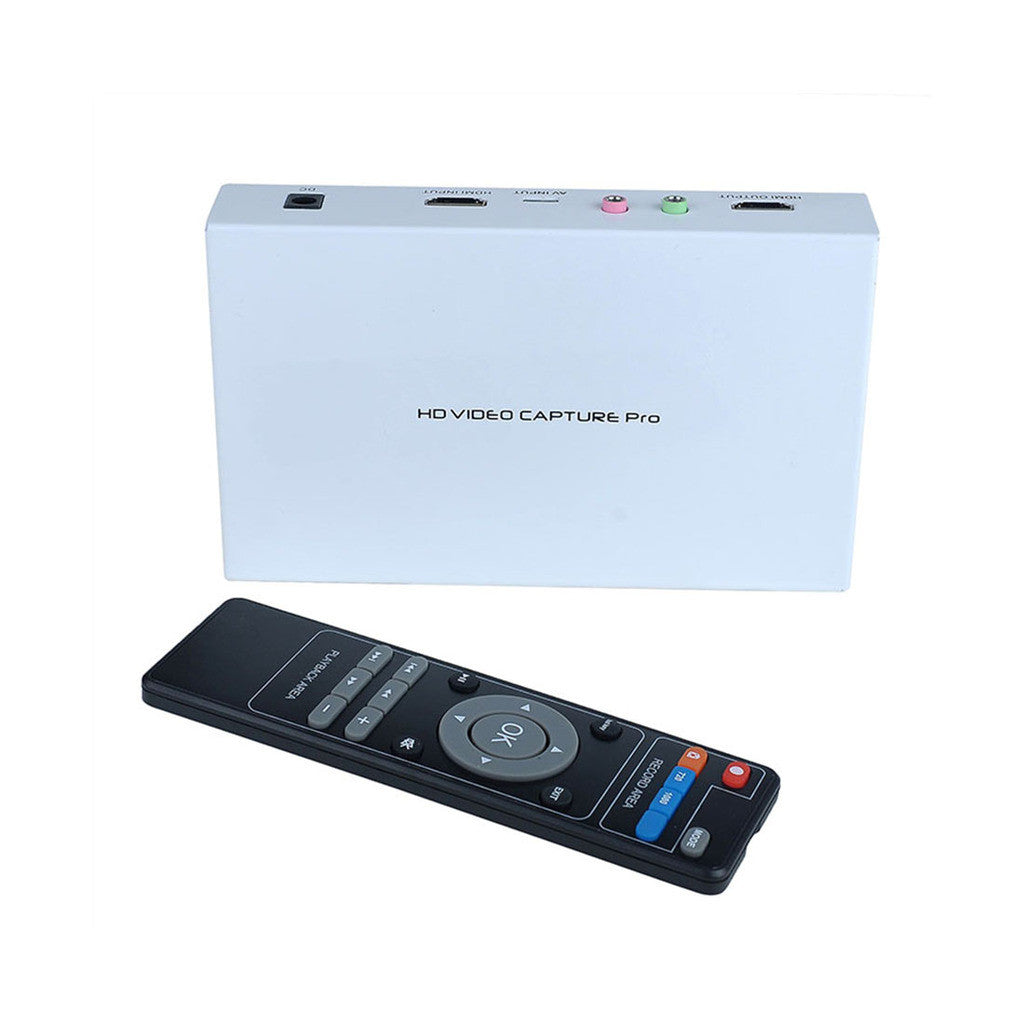

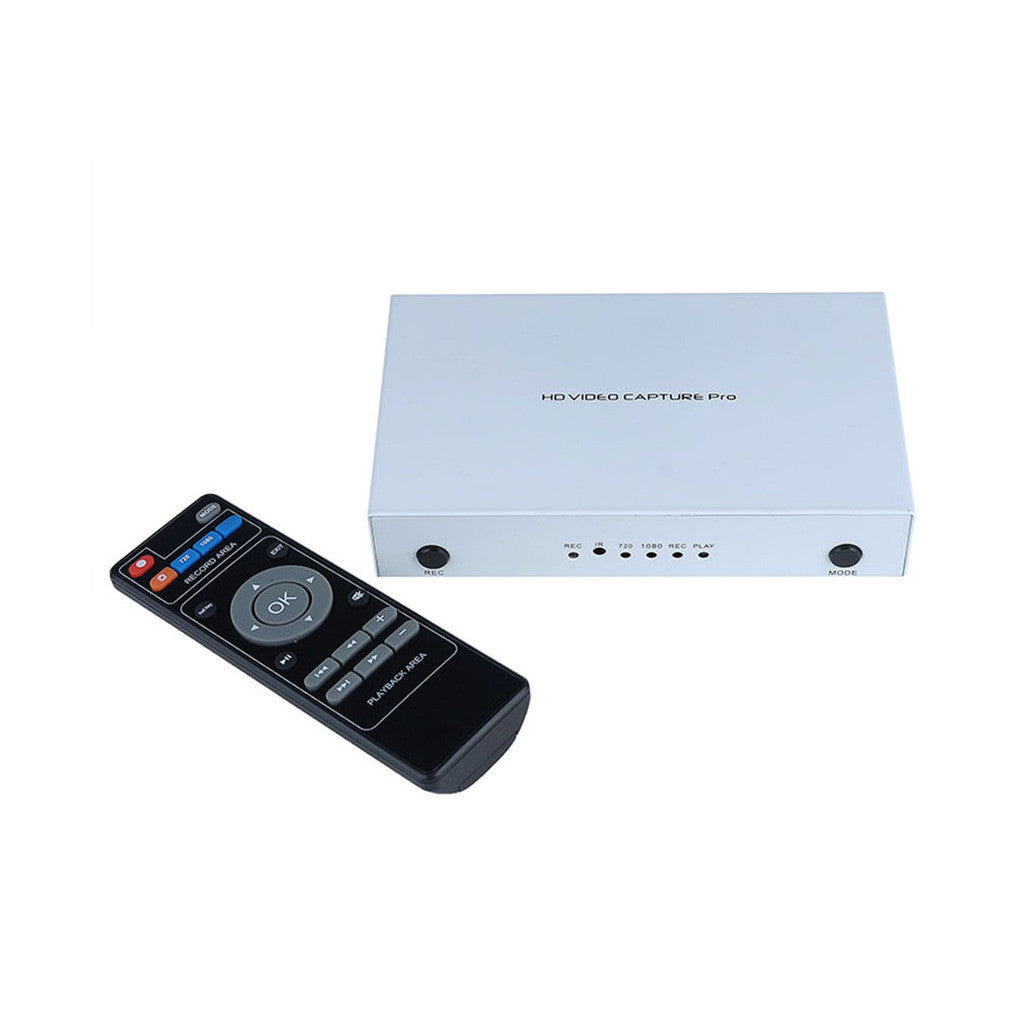

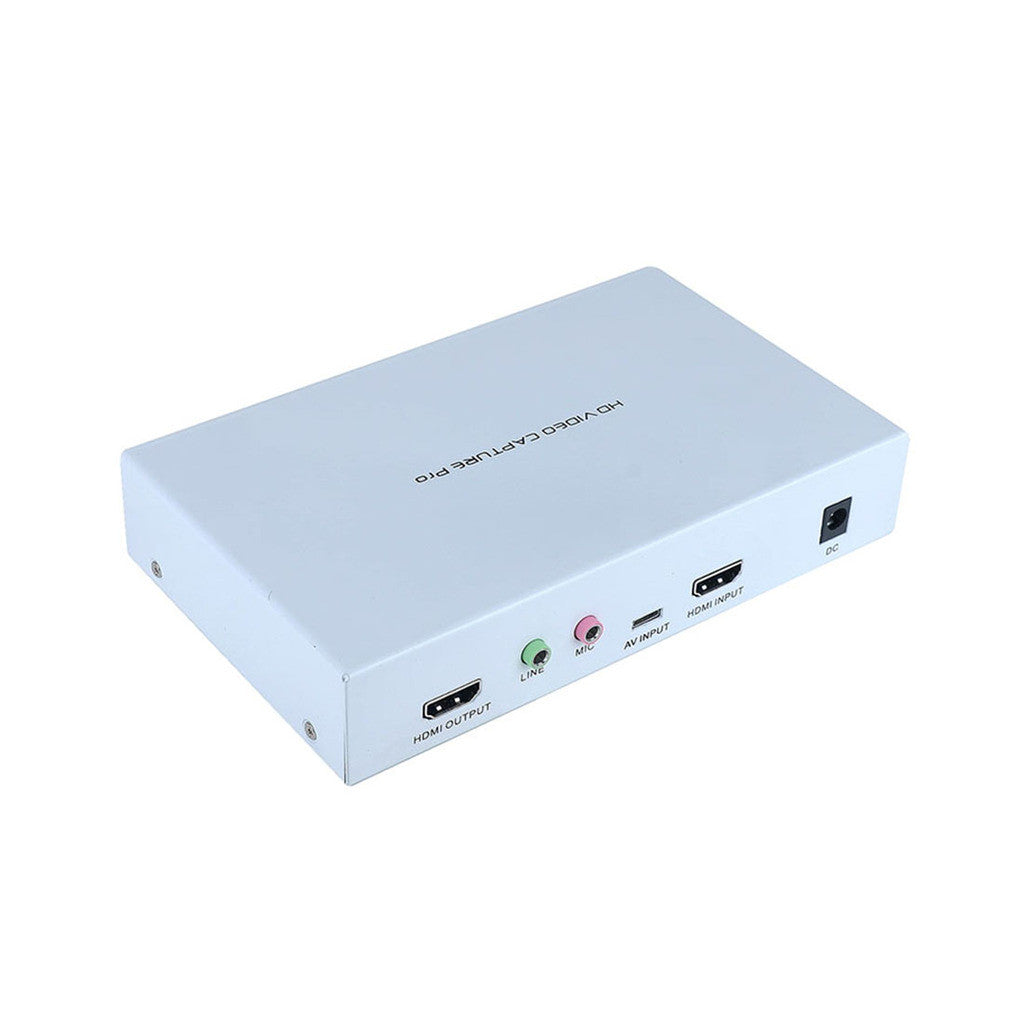

Ezcap291 HD Video Capture Pro 220V

Translation missing: zh-CN.products.product.overview 1080P recording with one click, no PC required. Easy to use, no any set-up. You just click RECORD button to record your gameplay. More video input choice: HDMI, Component Video, Composite Video. With 1080P HDMI Pass-through, you can playing HD gameplay when you're recording it.
With play back directly, you don't have to move the file to computer to check or playback.
Features:
easy usage
HDMI
composite video
component video
record function

Specifications:
*Connections:
Interface:USB 2.0 Host
Video Input:Digital:HDMI
            Analog: Component Video, Composite Video
Audio Input:Digital: HDMI
            Analog: RCA L/R, 3.5mm MicroPhone In
            NOTE: Microphone without pass through fo HDMI input
Video Output:Digital: HDMI (Pass-through from HDMI or Component or Composite Input)
Audio Output:Digital: HDMI (Pass-through from HDMI or RCA L/R Input)
             Analog: 3.5mm Stereo (Pass-through from HDMI or RCA L/R Input)

*Applicable Connections
HDMI:Industry HD camera, HD Medical endoscope, TV, gameplay, etc
Component:TV, gameplay, etc
Composite:Industry camera, Medical endoscope, TV, gameplay, etc

*Hardware Extra
Codec:Hardware H.264 encoder
User Interface:Record button, mode switch button.
      LED indicator for working status
Dimensions:160(L) ¡Á 100(W) ¡Á 30(H) mm.
Weight:420g

*Package Contents
Device:ezcap291 HD Video Capture
Others:DC adaptor, remote controller, AV cable,  Manual

*Standards
Storage Media:USB Flash Disk, Portable Hard Disk
Max Capacity: USB / 2T
Note: The exFAT format is not supported.
Resolution:Input / Pass-through:                                                                                             720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x            1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p),            1920 x 1080 (50p), 1920 x 1080 (60p)
  Capture:                                                                                              720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p),            1920 x            1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p),            1920 x 1080 (25p), 1920 x 1080 (30p)
  NOTE: Upscaling is not supported.
Record Format:Video: MP4, Audio: AAC Stereo
Record Quality:Max: 18Mbps@1080P 30fps
Record File:Max: 2GB / Per File, With RTC (Real Time Clock)
Record Place:Max: 140MB / Minute, 8.4GB / Hour
Power Supply:3.5MM DC 5V / 2A
