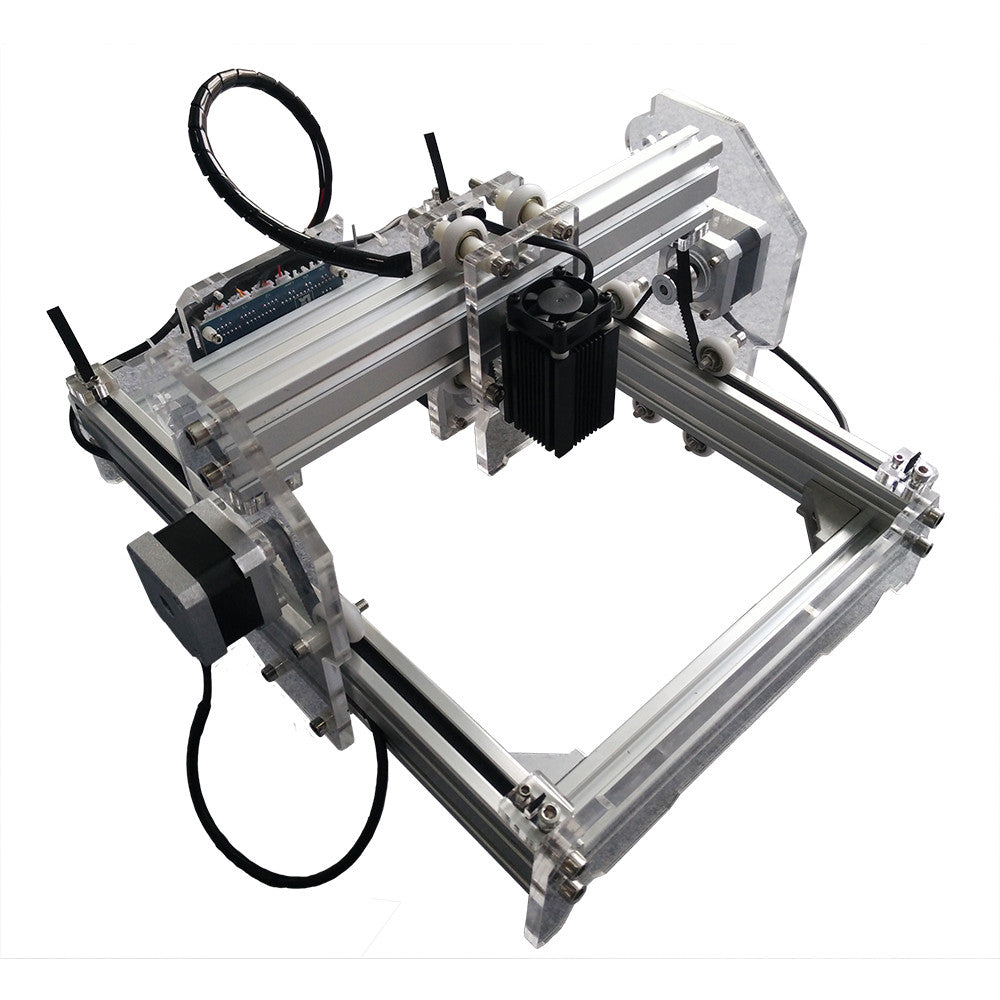

2500 MW Desktop Laser Engraving Machine in Flat Design & Aluminum Alloy Materials

Translation missing: zh-CN.products.product.overview Description:

The 2500 mw desktop laser engraving machine is ideal for amateur laser engraving usage with grayscale printing, low-light positioning & freedom positioning functions. It is only need to connect to the computer & then you can print any pictures you like with your own creativity.

Specifications:

Machine Finished Size: 34cm * 37cm * 21cm (excluding laser height)

Maximum Engraving area: 15cm * 20cm

Machine Packing size: 49cm * 40cm * 13cm

Machine Package weight: 4.5KG

Laser modules: 12V high power laser modules (with fan)

Power Selection: 2500 mW

Carving materials: bamboo, wood, paper, plastics, leather, etc.

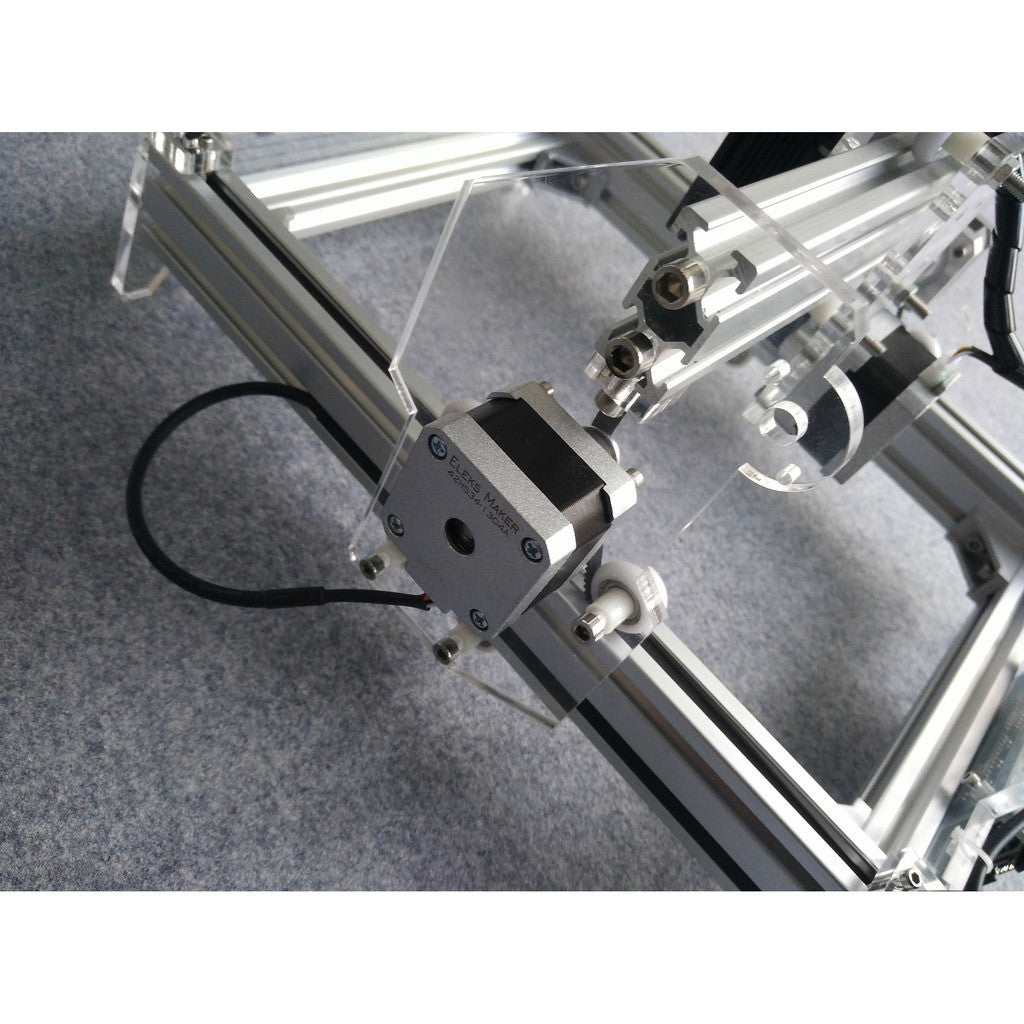

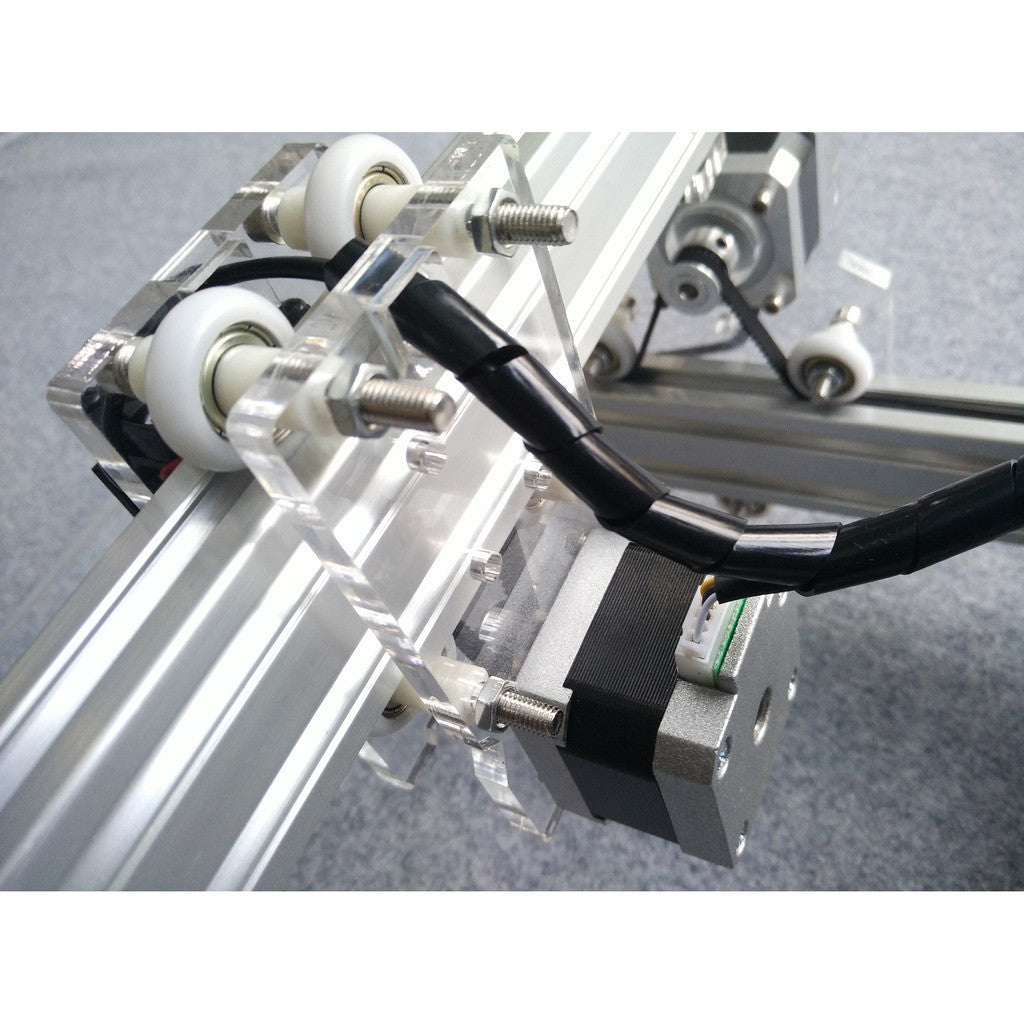

Stepper motor: Y-axis dual track!  precision stepping motor 42!

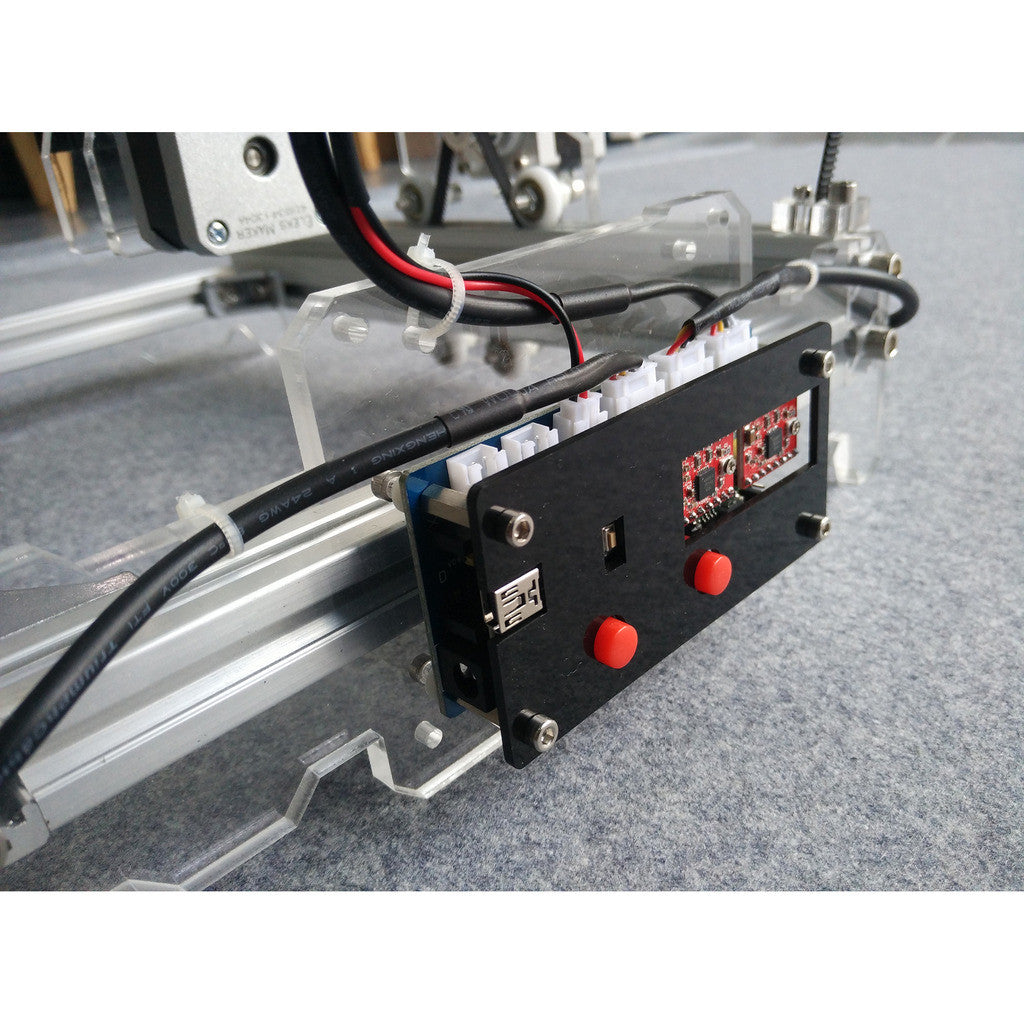

Control board: USB standard 2-axis control board

Control software: bitmap print Dummies Edition (Benbox) / Senior passes engraving (GRBL)

Rack Material: High grade Alumiunm + lasar cut acrylic + full set stainless steel screws

Power Selection: 12 V2.5A DC power adapter (100-240V universal voltage)

Engraving Material Note:

1. Materials that can be engraved with our laser engraving CNC printer are wood, bamboo, plastic, paper, leather, bank card, rubber etc.

2. Materials that cannot be engraved with our desktop DIY laser engraver are metal, stone, ceramic, shell, light-reflecting material, transparent material etc.

Cutting Material:

It can only cut foam, paper, thin leather material.

Note:

1. We have uploaded the software on netdisk. It supports windows XP, 7 & 8 versions. The link is here (just click it): software.

2. Do not use this machine continuously for more than 2 hours if used for more than 2hrs. Then give a 30 minutes break or else it may damage the laser module or even burn out. Act wisely.

3. Kindly wear protective eye glasses while engraving.

4. This 2500 mw desktop diy laser engraver is designed only for Microsoft system; it is not compatible with MAC system. Do not buy if you don’t have Microsoft system!

Please enter the website, try to download the special software, if you cannot download the software, you will not be able to use. Access the link below.
https://onedrive.live.com/redir?resid=24C3BCA0DBDDE64B!109&authkey=!ACbKU46RW9Ut7-I&ithint=folder%2cmp4

Package included:

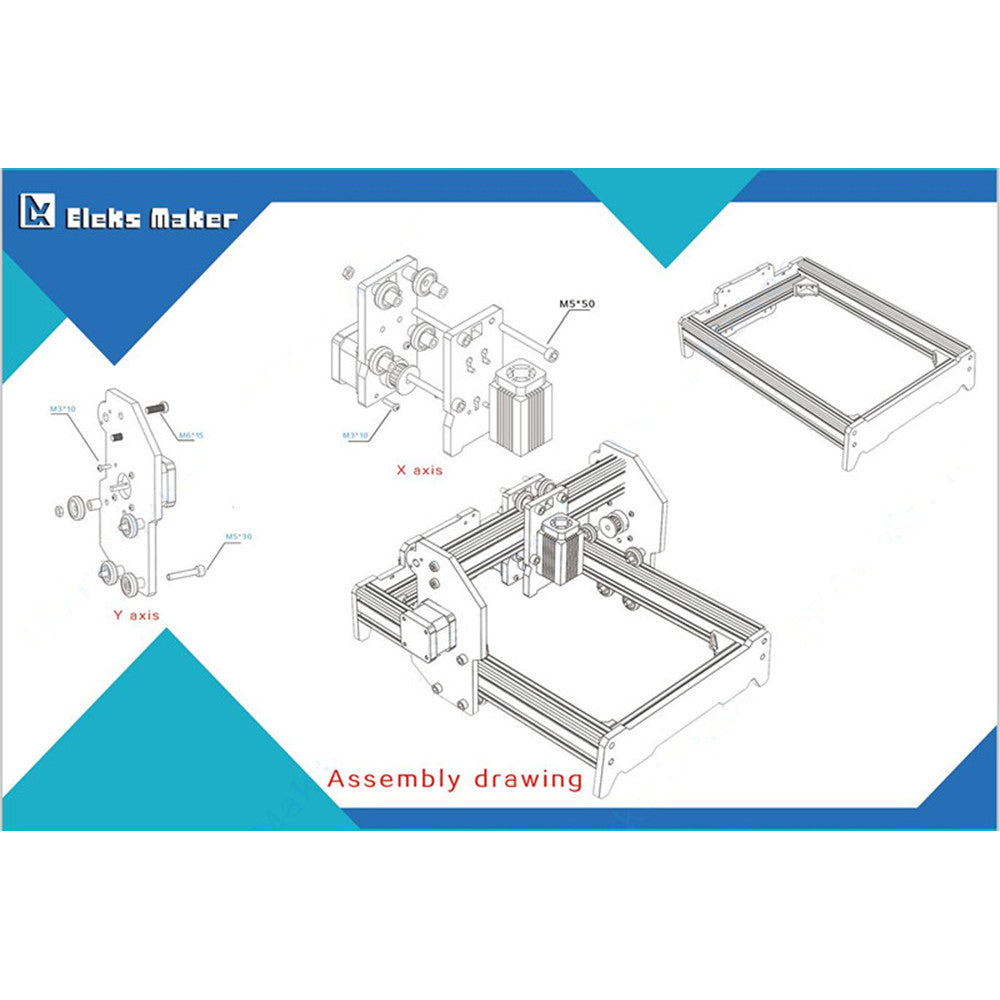

Refer the above image.
